Overview
- Purpose Of Procedure: To determine the coefficients of friction (static and kinetic) of plastic films and sheeting as per ASTM D-1894.
- Definition Of Terms: The coefficient of friction (COF) is the ratio of the force of friction between two surfaces to the normal force pressing them together.
- Used in quality control and material testing applications.

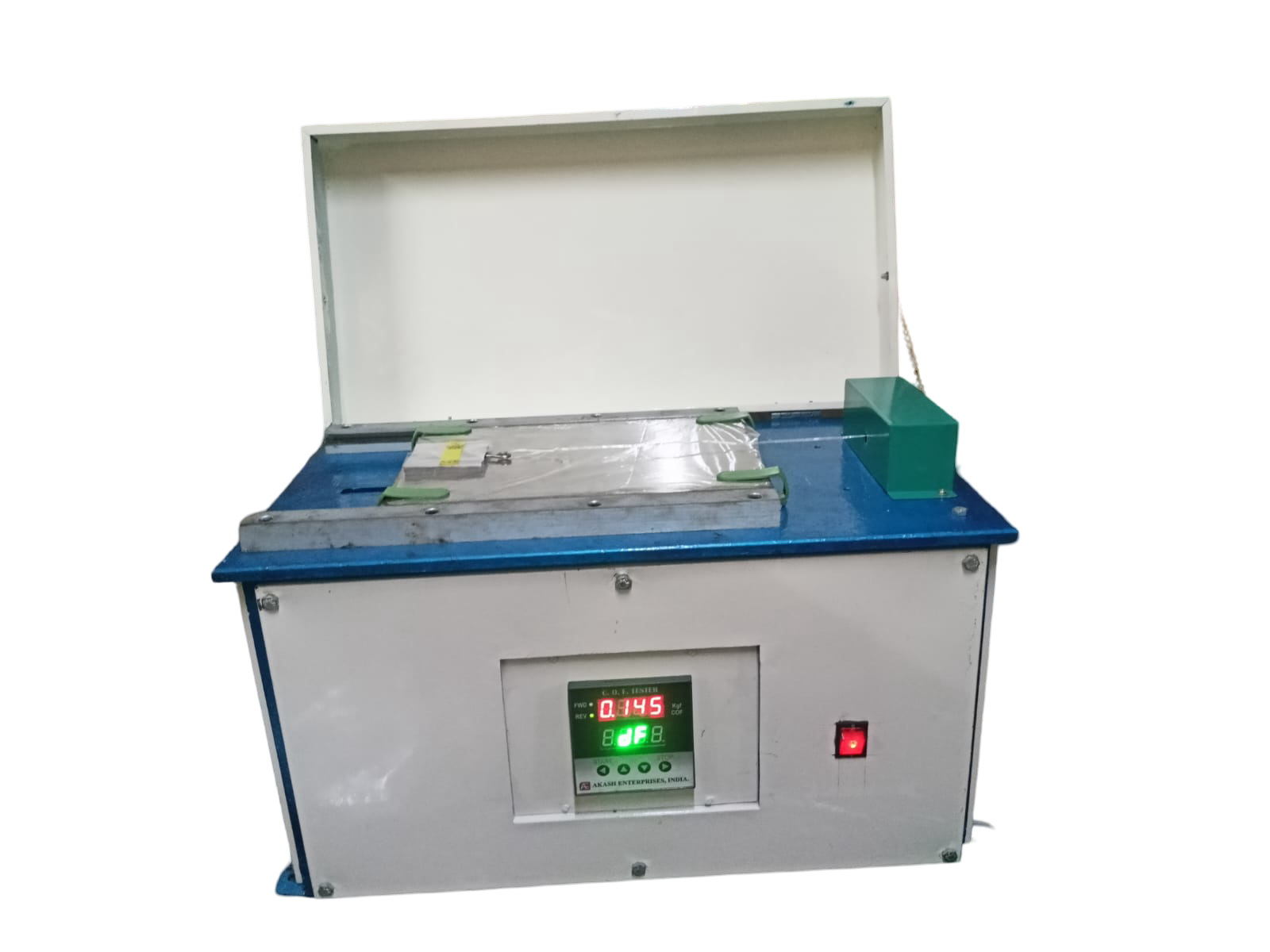

Model: COF-1
Specification:
| Capacity | Up to 2.999 kg |
| Display | Direct display of static and kinetic friction values |
| Speed | 150 mm/minute |
| Weight of Sled | 200 grams |
| Accessories | Three S.S. templates |
| Paint | Powder coated |
| Power | 230 Volts, 50 Hz, single phase |
| Computerized Model | Digital controller replaced with microcontroller, RS-232 communication, interface software for PC |
| Additional Features | Load vs. travel graph, result storage, printout option, batch merging of 10 samples with mean value & standard deviation |
