Overview

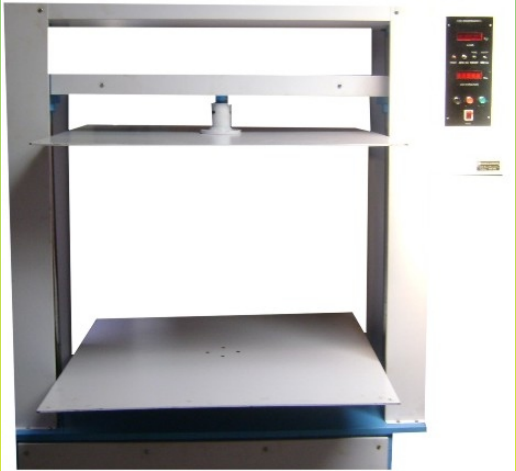

- The box compression tester is designed and manufactured as per the requirements of transport packaging case pressure test
- It confirms ISO2872 and ASTMD642 pressure tests
- It is applicable to carry out proof pressure, deformation and stowage tests for flexible packaging cases with corrugated cases, honeycomb crates, and other packaging cases
Model: BXC-01
Specification:
| Maximum load | 2000.0 KGF |
| Accuracy rating | Grade 1 |
| Effective force measurement range | 0.4%-100% |
| Force measurement precision | Within ±0.5% of indicated value |
| Effective testing space | Upto 1,000mm*1,000mm*1,000mm (Mention when order will be placed) |
| Range of test speed | Variable up to 200mm/min. or Custom specified |
| Speed accuracy | within ±5% of the indicating value. |
| Accuracy of displacement measurement | within ±1% of the indicating value. |
| Load, Cross head Movement & Speed Display | Seven Segment L.E.D 0.5” |
| Paint | Powder coated & Chrome finished |
| Power | 230 Volts, 50/60Hz, single phase, |
