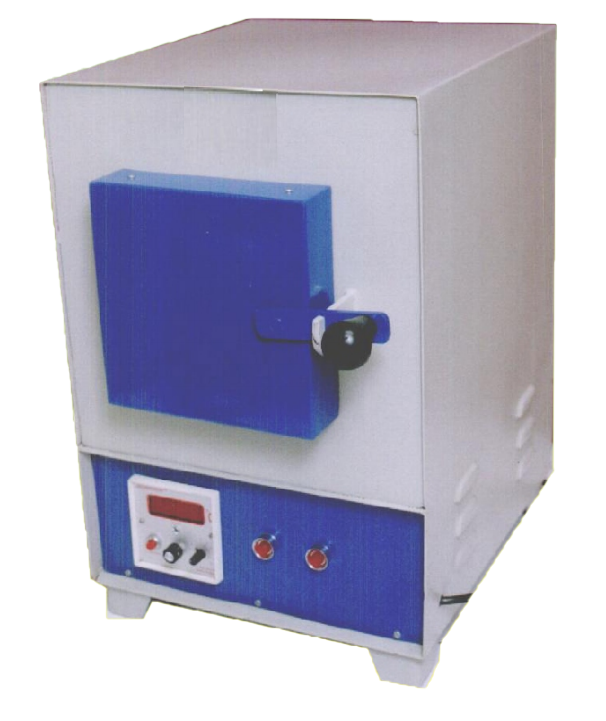

Overview
- Outer body is made of thick Mild Steel.
- Furnace is lagged with ceramic wool for insulation. Heaters are madeof A1 Kanthal wire, uniformly wound on the muffle.
- A safety thermal fuse is provided to fuse of when the temperature exceeds the set temperature.
- Mild steel control box is fitted on the bottom side of the furnace.
- It consists of indicating lamps, On/Off switch, solid-state relay and digital PID controller along with Cr/Althermocouple sensor.
Model: D-MF1
Specification:
| Size of working chamber | 4 inch x 4 inch x 9 inch, 5 inch x 5 inch x 10 inch, 6 inch x 6 inch x 12 inch or Custom specified spec. |
| Temperature range | 100 °C above ambient to 1050 °C. |
| Temperature control method | PID Based Temperature Controller |
| Control Accuracy | +/- 5ºC |
| Heater Firing Method | Solid State Relay |
| Paint | Powder coated. |
| Power | 230 Volts, 50/60Hz, single phase |
