Overview

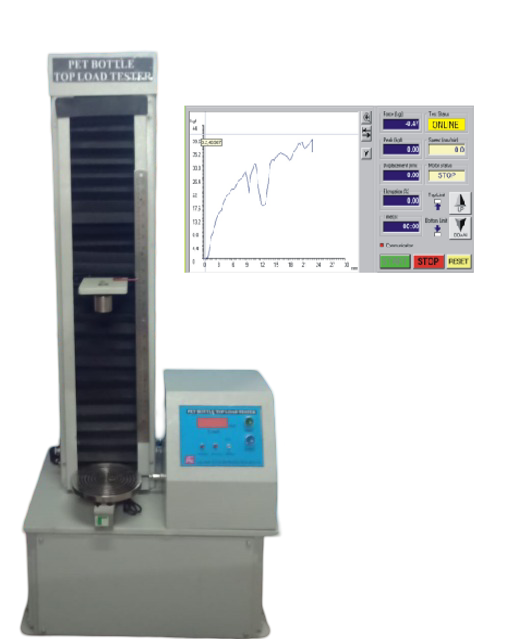

- An accurate tool to measure the crushing load of bottles (HDPE, LDPE, and PET) is the top load tester
- The device can give the peak load value at which the crushing occurred
- The instrument's built-in microprocessor makes it simple for the user to analyse the results
- Windows Based User friendly software via RS-232 Port through Computer, The test parameters displayed with graph simultaneously at one frame you can 10 Nos. Samples tested, Zooming the Graph in offline mode the mean value automatically displayed & also print in any printer & also the test value in found in Kgf, Pound, Newton, Self-calibration of Load and Speed, and many extra feature you found
Model: BTL-02
Specification:
| Load capacity | 100.0kgf.(Or Custom Specified Spec) |
| No. of load cell | One |
| Crosshead Travel Movement | 300 mm. |
| Effective Crosshead Travel Movement | up to 800.0 mm. |
| Elongation/Deformation | 0.1 mm |
| Minimum jaw separation | 100 mm |
| Speed | 100mm/min |
| Peak holds Facility | To latch the maximum load. |
| Auto Stop | When sample break at this moment the machine will automatically stop. |
| Quick Auto Return | When sample break at this moment the machine will automatically return as it's start position. |
| Paint | Powder coated & Chrome finished |
| Power | 230 Volts, 50/60Hz, single phase, 400 Volts, 50/60hz Three phase |
