Overview
- Purpose Of Procedure: To determine the temperature at which a material softens under a specific load.
- Definition Of Terms: The Vicat softening temperature is the temperature at which a flat-ended needle penetrates the specimen to a depth of 1 mm.
- This temperature indicates the material's performance in elevated temperature applications.

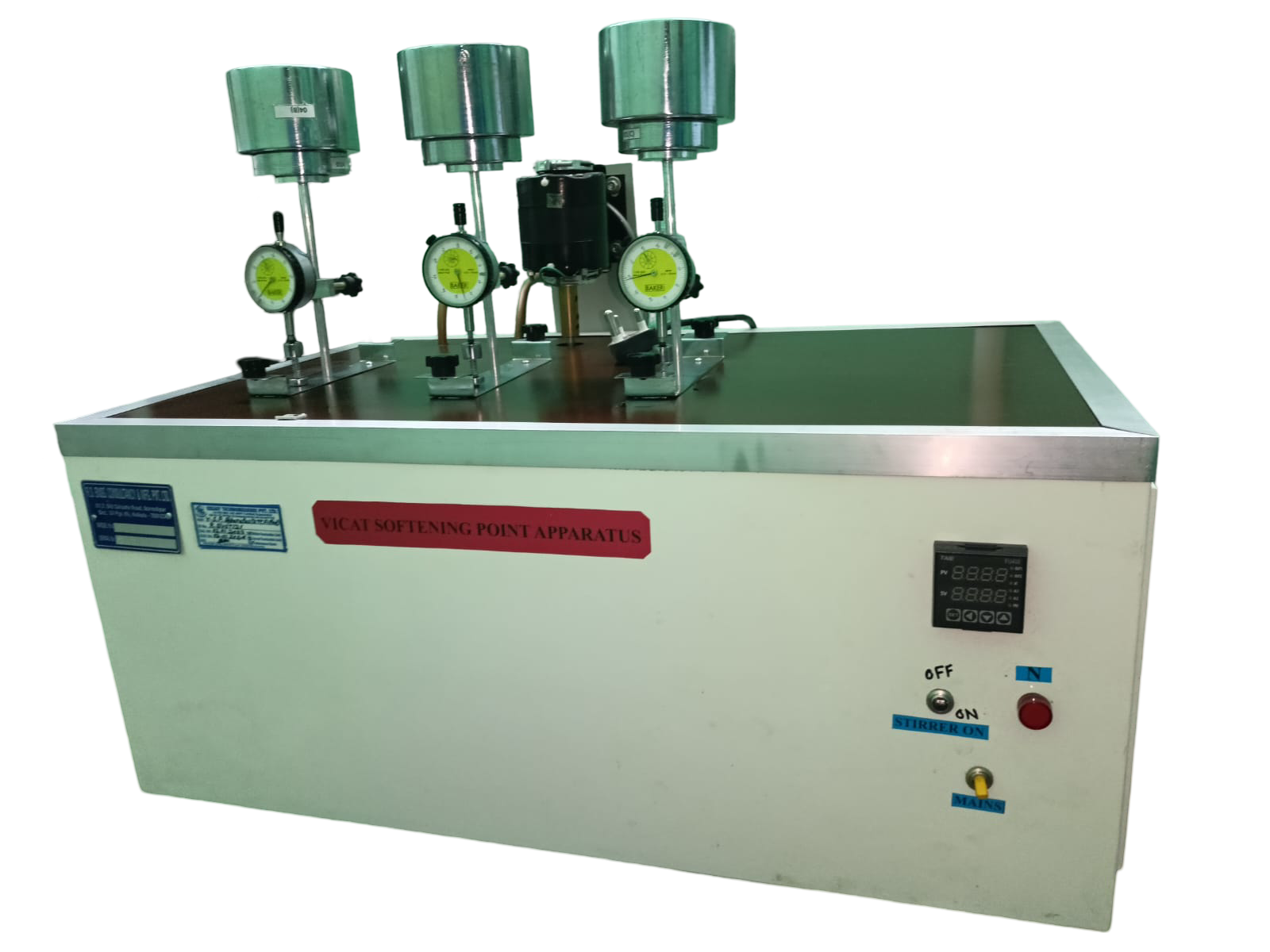

Model: VSP-1
Specification:
| Load | 10N or 50N |
| Oil Bath Temperature | 23°C (starting), increased at 50° or 120°C per hour |
| Penetration Depth | 1 mm |
| Specimen Size | Thickness: 3-6.5 mm, Width/Length: At least 10 mm |
| Layering | No more than three layers to meet minimum thickness |
| Data | Temperature at which needle penetrates 1 mm. |
