Overview

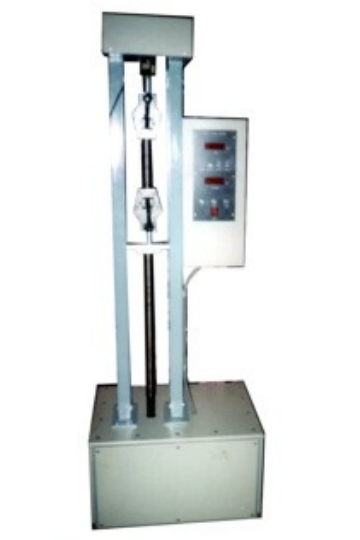

- The Akash Digital Universal Tensile Tester is very low cost affordable, low maintenance reliable easy to operate & wide range of applications including: Tensile Testing and Peeling, Flexural, Compression, Shear using appropriate test attachments
- On various materials such as Metal Rubber, Plastic, Leather, Asbestos, PVC, Paper, Textile, Wire/Cable, Plywood/wood, Ceramics material etc
- in conformity with standards like BIS, ASTM, DIN or ISO
- A comprehensive range of grips, attachments/fixtures, cutting dies are available to suit the testing needs of many different industries
Model: Digi-Ten2
Specification:
| Load capacity | 20.000, 200.00, 2000.0 kgf.(Or Custom Specified Spec) |
| No. of load cell | One (Option to Attach one extra grip) |
| Crosshead Travel Movement | up to 1000.0 mm. |
| Effective Crosshead Travel Movement | up to 800.0 mm. |
| Elongation/Deformation | 0.1 mm |
| Load, Cross head Movement & Speed Display | Seven Segment L.E.D 0.5” |
| Horizontal day light | 400mm*. |
| Speed | Variable upto 500mm/min or Fixed three Speed As per Customer Spec. |
| Peak holds Facility | To latch the maximum load. |
| Auto Stop | When sample break at this moment the machine will automatically stop. |
| Paint | Powder coated & Chrome finished |
| Power | 230 Volts, 50/60Hz, single phase, 400 Volts, 50/60hz Three phase |
