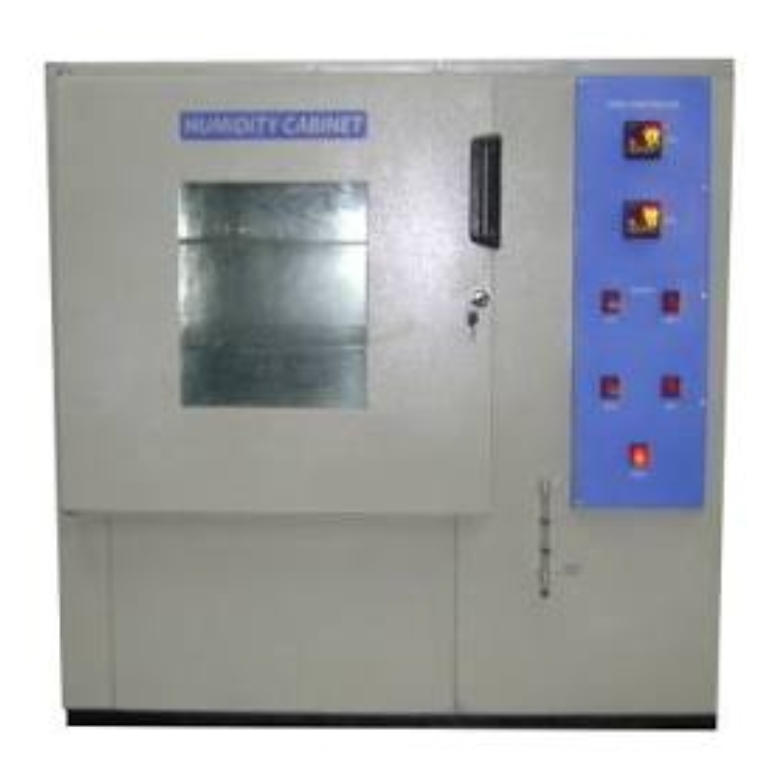

Overview
- Automated Humidity chamber to determine the effect of relative humidity on sample at various temperatures.
- The unit is a double walled chamber, with glass wool / PUF insulation.
- Interior is made of Stainless Steel and Exterior is either made of Mild Steel.
- The unit has full-length inner glass door and outside metal door with magnetic gasket and lock.
- The unit is provided with perforated Stainless Steel trays.
- Forced air circulation for uniform temperature.
- PU wheels for easy move ability.
- Automated Humidity chamber is economical, reliable & programmed the instrument as easy to operate no need for extra skill required.
Model: HUM-01
Specification:
| Size of the working chamber | 18 inch X 18 inch x 24 inch or Custom Specified Spec |
| Material of construction | Inner body: S.S, Outer body: M.S |
| Humidity range | 20% RH to 98% RH. |
| Temperature range | 10ºC to 55ºC |
| Control Method | PID Based |
| Humidity Sensor | ERTL Certified Humidity Sensor |
| Accuracy | Better than 2% |
| Compressor | CFC free |
| Direct display of Temperature & Humidity | Set RH, Actual RH, Set temperature and Actual temperature. |
| Paint | Powder coated & Chrome finished |
| Power | 230 Volts, 50/60Hz, single phase. |
