Overview
- Purpose Of Procedure: To perform tensile tests to determine the strength and quality of belts and fabrics used in bag production.
- Definition Of Terms: Tensile testing measures the force required to pull a material to its breaking point.
- Used for testing various fabric and belt materials, including polypropylene, polyester, and polyamide.

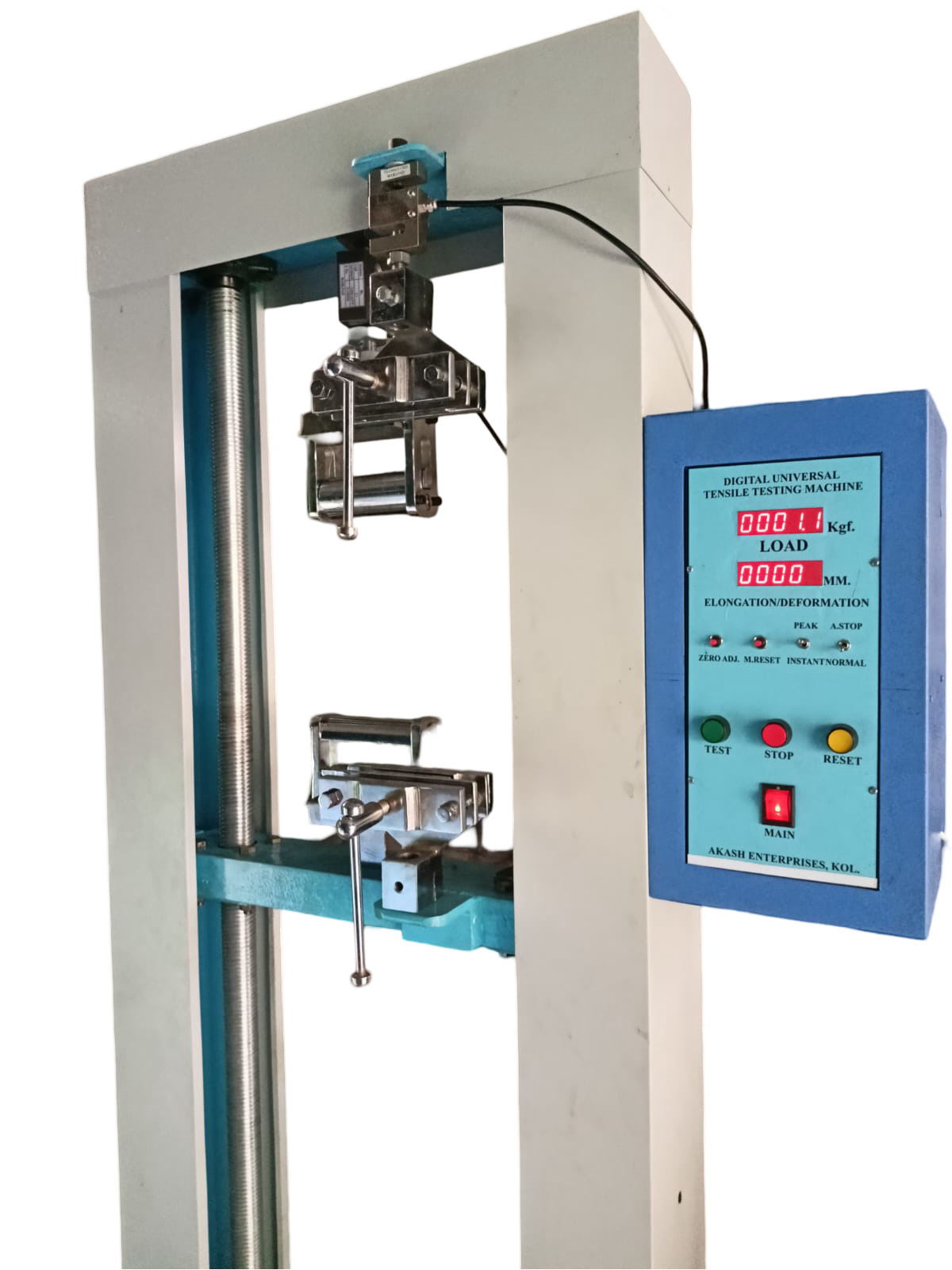

Model: FBT-1
Specification:
| Materials Tested | Polypropylene, Polyester, Polyamide, Monofilament, Multifilament Belts, and Fabrics |
| Max. Testing Strength | 4 tons (40 kN) |
| Max. Belt Width | 100 mm |
| Max. Fabric Width | 100 mm |
| Loadcell Measurement | Intermittently 2 kg |
| Mechanical System | Special Geared Motor Driven Screw Spindle |
| Test Speed | 22 cm/min (inverter controlled) |
| Power Consumption | 0.55 kW/h |
| Power Supply | 220V, 1 Phase, 50-60Hz |
